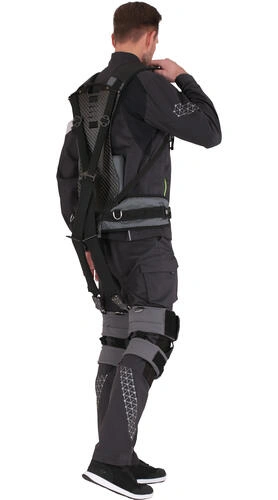

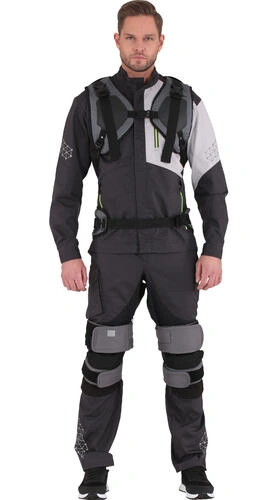

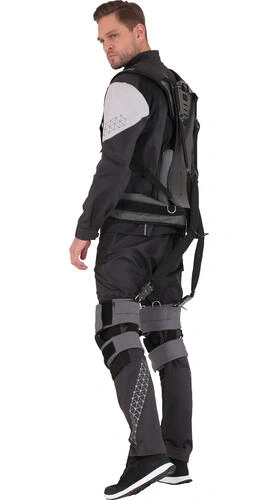

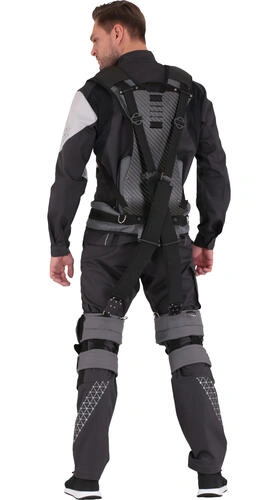

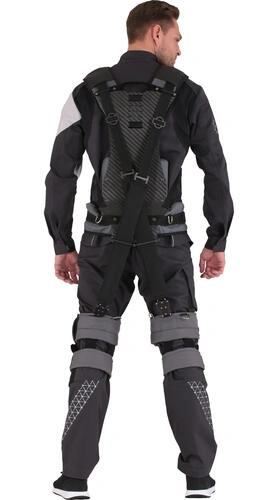

Exoskeleton EXORISE CARBONIX

The CarboniX exoskeleton is a system comprising a corset, springs, and elastomers, designed to protect the back from occupational injuries and chronic conditions. Its engineering and technical design addresses several key objectives

1. Holds the body in a medically safe position and prevents the lower back from making bends that lead to a back strain when lifting a load. This is what we call the disciplining function. 2. During a bend, elastic mechanisms tighten and the system works to straighten the body by supporting the shoulders. In this way the exoskeleton takes on up to 37% of the work performed by the muscles involved in extending the back or holding the torso in a bent position. This is what we call the power or compensatory function. 3. Protects the back and kneecaps from external mechanical impact.

CarboniX in the Exorise exoskeleton lineup is a variant of the X-Soft model and delivers the same functionality based on the same technical solutions. Its lightweight shell, carefully selected materials and minimal contact area with the body eliminate the discomfort that can arise with the X-Soft exoskeleton when used in less aggressive working environments (due to its specific design). Contemporary styling, materials that are pleasant both tactilely and visually, and a carefully refined construction significantly enhance the comfort of using CarboniX in situations where increased resistance to wear from extreme temperatures, contact with flame, sparks, acids, petroleum products and other harmful factors is not required.

Thanks to the above, the use of the CarboniX exoskeleton

1. Increases body endurance

For these types of work, the first thing that becomes overstrained and fatigued in the body is the lower back muscles. The exoskeleton takes on most of their work, preventing their overload and premature fatigue. Less time is required for rest, with a noticeable reduction in fatigue by the end of the work or its stage.

2. Minimizes the risk of back injuries

An exoskeleton prevents performing actions in an "incorrect" position, which would otherwise lead to strains of muscles, ligaments and tendons, dislocations or damage to intervertebral discs, the development of osteochondrosis and spondylosis, chronic pain affecting quality of life, impaired organ function, psychological problems associated with restricted mobility and lifestyle changes, and, in the case of severe injury, paralysis. 3. Provides a noticeable beneficial effect of structural support, which is especially evident when health problems are already present. Some muscle groups may relax because their function is partially taken over by the exoskeleton, providing stabilization at key torso junctions.

Features of the CarboniX exoskeleton

1. Domestic developments take into account human biomechanics and anatomy. 2. Conclusion of the Research Institute of Occupational Medicine named after N.F. Izmerov on effectiveness up to 37% and the safety of using the exoskeleton. 1. Hypoallergenic and antibacterial materials with a high level of breathability, washable and dry-cleanable. 2. Operating temperature from 0° to +30°.
